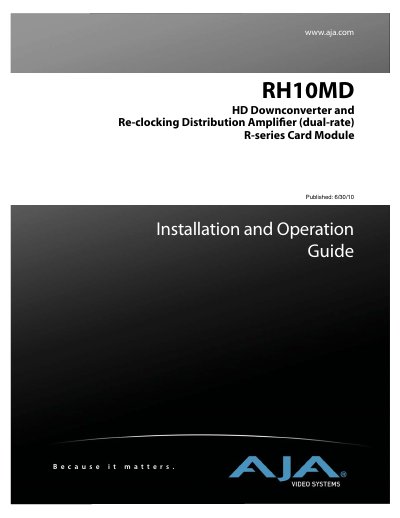

This document is an installation and operation guide for AJA's RH10MD HD Downconverter and Re-clocking Distribution Amplifier (dual-rate) R-series Card Module, describing the features and characteristics of the product.
The AJA RH10MD is an R-series card module designed for broadcast quality HD down conversion and re-clocking distribution. It accepts multi-standard SDI inputs (including 24p/psf with 3:2 pulldown) and provides four re-clocked HD-SDI outputs alongside four configurable SD outputs that can be set as either analog or digital via jumpers.
Configuration is managed through a front-panel dipswitch for output format, monitor aspect ratio, and other settings, along with rear jumpers (J2) for synchronization options. The manual details the installation process into FR1/FR2 frames, including safety warnings regarding power disconnection, and provides specifications such as 6 watts power consumption and support for various video formats.
| Power Consumption | 6 watts |
|---|---|
| Input Formats | 1035i/1080i/1080psf/1080p/720p SMPTE 292/296, or 525/625i SMPTE 259M |
| Frame Rates | 23.98/24/25/50/59.94/60 Hz |
| Delay | 1 frame, audio and video |
Yes, the four SD outputs can be individually configured as either analog (component or composite) or SDI via jumpers on the circuit board.
Yes, it supports all HD formats including 24p/psf with 3:2 pulldown.
The module consumes 6 watts.
