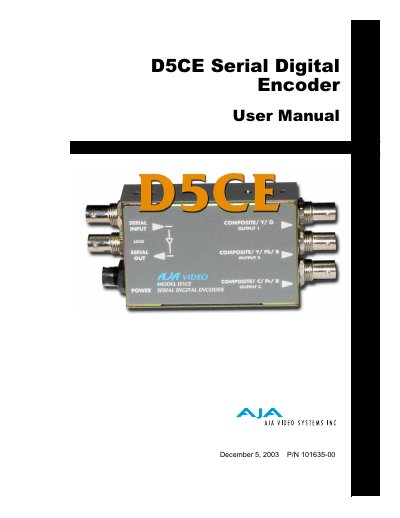

The D5CE Serial Digital Encoder User Manual provides information about the features and characteristics of the D5CE Serial Digital Encoder produced by AJA Video, Inc.
The AJA D5CE Serial Digital Encoder provides low-cost, all-digital conversion of SDI to either composite or component analog video. It features three user-configurable analog BNC outputs that support various formats including YPbPr, Betacam, RGB, and NTSC/PAL. The device automatically configures for 525 or 625 line inputs and includes a re-clocked SDI loop-through output for monitoring and dubbing applications.
| Serial Input | SMPTE 259M 270MB (SDI) |
|---|---|
| SDI Cable Equalization | 300 meter 8281 typical |
| Frequency Response (Y) | +/- .25db to 5.5Mhz |
| D/A Converters | 10 bits |
| Signal Path | 8 bits |
| Delay (input to output) | 1.5us |
| Power | 5v DC regulated, 2.5 watt |
| Size | 5.1" x 2.4" x 1" |
The outputs support YPbPr, Betacam, RGB, NTSC, PAL, and combinations of composite and Y/C.
Configuration is done using a 4-switch DIP interface accessible through a cut-out in the bottom of the unit.
The D5CE has 10-bit D-to-A converters for the analog outputs.
