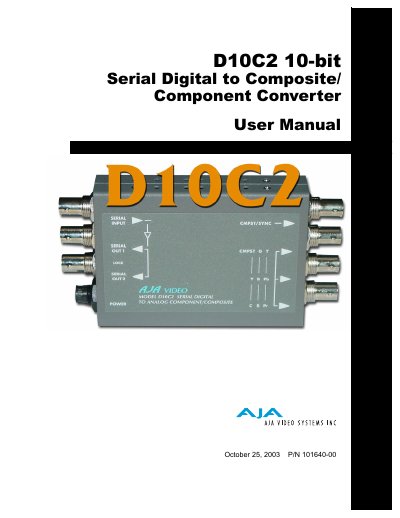

Introduces the features and characteristics of AJA D10C2 10-bit Serial Digital to Composite/ Component Converter
The AJA D10C2 converts Component Serial Digital (SDI) to analog Composite or Component formats, providing four analog outputs and two equalized, re-clocked SDI loop-through outputs. The device automatically configures for 525 or 625 line component digital inputs and outputs analog NTSC, PAL, or component video based on DIP switch settings. It features high-quality 10-bit encoding with 4 times oversampling and includes digital noise reduction.
| Serial Input | SMPTE 259M 270MB, (SDI) |
|---|---|
| Frequency Response (Y) | +/- .15dB to 5.5MHz |
| Frequency Response (Chroma - Component) | +/- .15dB to 2.5MHz |
| D/A Converters | 10 bits, 4X oversampling |
| Delay (input to output) | 1.5us |
| Power | 5v DC regulated, 4 watt |
| Size | 147 x 79 x 25 mm |
The D10C2 supports RGB, YPbPr, or Betacam Component formats, as well as Composite NTSC or PAL.
Configuration is done using an external 4-switch DIP switch accessible through a cut-out in the bottom of the unit.
AJA Video warrants the product to be free from defects in materials and workmanship for a period of five years from the date of purchase.
