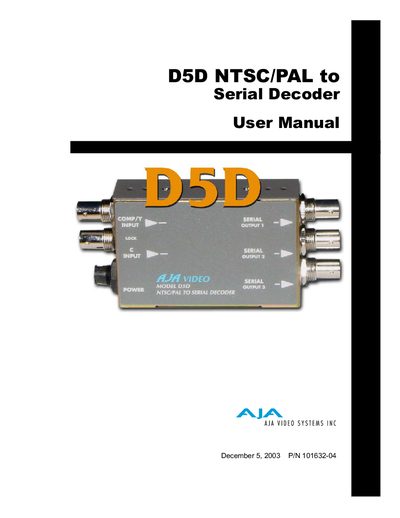

This manual introduces the use of D5D NTSC/PAL to Serial Decoder.
The AJA D5D Serial Digital Decoder provides low-cost all-digital decoding of analog NTSC, PAL, or Y/C (S-Video) to 4:2:2 component serial digital. It automatically configures NTSC or PAL analog inputs to the corresponding line count 4:2:2 component serial digital outputs and uses a crystal PLL jitter filter to reduce jitter. The device provides three 4:2:2 component serial digital outputs and decodes the full dynamic range of input video without clipping.
| Inputs | NTSC/PAL, or Y/C (S-Video), 2 BNCs |
|---|---|
| Outputs | SDI (SMPTE 259M), 3 BNCs |
| Frequency Response | +/- 0.25 dB to 5MHz |
| Power | 5v DC regulated, 3.5 watt |
| Size | 5.1" x 2.4" x 1" (131 x 61 x 25 mm) |
The D5D supports analog NTSC, PAL, or Y/C (S-Video) inputs.
The D5D provides three 4:2:2 component serial digital outputs.
The D5D requires a Time Base Corrected (TBC) source.
