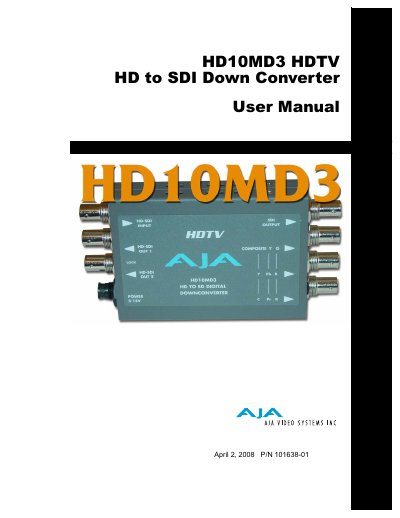

HD10MD3 HDTV HD to SDI Down Converter User Manual is a manual for the use of HD10MD3.
The AJA HD10MD3 is a miniature digital downconverter designed to convert HD-SDI video to standard definition SDI and analog component composite video. It utilizes a full 10-bit data path and multi-point interpolation to ensure high-quality down-converted video. The device supports various input formats, including 1080i, 1080p, and 720p, and can automatically switch to PAL or NTSC based on the input frame rate.
| Input Formats | 1080i 50/59.94/60Hz, 1080p/psf 23.98/24/25/29.97/30 Hz, 720p 50/59.94/60Hz |
|---|---|
| Power Requirement | 5-18V unregulated |
| Physical Dimensions | 5.8" x 3.1" x 1 (147 x 79 x 25mm) |
| Frequency Response (Y) | +0, -.5db to 30 MHz |
The product is warranted to be free from defects in materials and workmanship for a period of five years from the date of purchase.
The device automatically switches to PAL when the input is 1080i 50, 1080psf 25, or 1080p25; all other frame rates result in an NTSC output.
The converter requires a +5VDC power supply, such as the AJA power supply model DWP.
