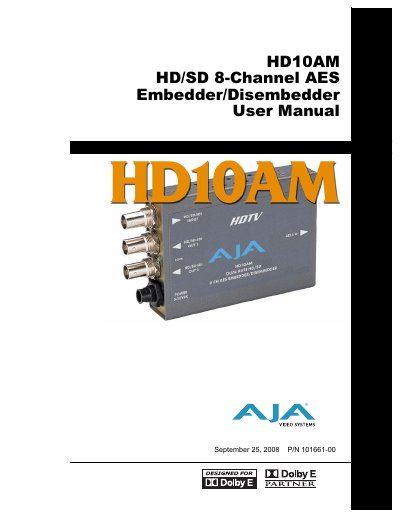

User manual for HD10AM HD/SD 8-Channel AES Embedder/Disembedder. Describes the features and characteristics of the HD10AM HD/SD 8-Channel AES Embedder/Disembedder product from AJA Video, Inc.
The AJA HD10AM is a dual rate device designed for embedding and disembedding 8-channel AES audio into HD-SDI or SDI video signals. It supports both embedded and pass-through modes, allowing users to select specific channel pairs for processing while maintaining compatibility with Dolby bitstreams. This manual is written in Chinese.
| Video Formats | HD SMPTE 292/296/274M, SD SMPTE 259M |
|---|---|
| Audio Inputs | 4 x AES3 110 ohm XLR, Pro format |
| Power Input | 5-18V, 5 watts |
| Dimensions | 5.8" x 3.1" x 1 (147 x 79 x 25mm) |
| Video Processing Delay | HD Mode: 7 μS, SD Mode: 19 μS |
Switch 8 controls whether ancillary horizontal data is passed or deleted from the input, used in conjunction with switches 1 through 4.
Yes, with the SRC dipswitch setting ON, AES inputs are converted to a 48KHz rate synchronous to the video input.
AJA Video warrants that the product will be free from defects in materials and workmanship for five years from the date of purchase.
