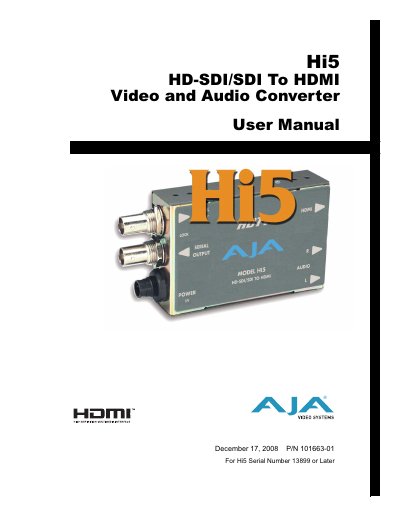

User manual for Hi5 HD-SDI/SDI To HDMI Video and Audio Converter. Describes the features and characteristics of the product.
The AJA Hi5 is a video and audio converter designed to convert SDI or HD-SDI inputs to HDMI output. It supports full HDMI features including 10-bit video and embedded audio, providing a convenient single-cable connection for driving HDMI monitors. The device also offers separate 2-channel RCA audio outputs and an equalized looping SDI/HD-SDI output.
| Input Formats | 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30 |
|---|---|
| Video Input Type | HD-SDI/SDI, SMPTE-259/274/292/296 |
| HDMI Output Resolution | 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 |
| Power Requirement | +5 VDC regulated, 3 watts |
Yes, it supports full HDMI features including 10-bit video and 8 channels of embedded audio.
The equalized looping SDI/HD-SDI output is useful for connecting additional equipment or daisy chaining multiple monitors.
No, the device requires no configuration and uses 5V power.
