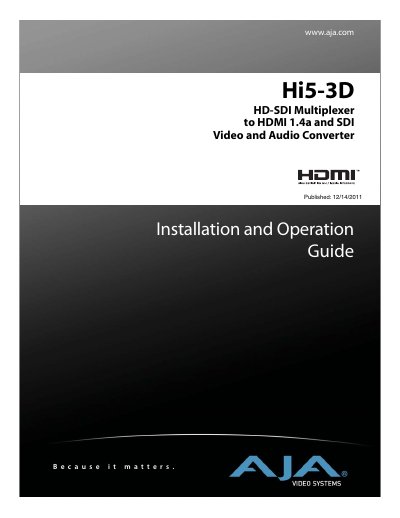

AJA Hi5-3D HD-SDI Multiplexer to HDMI 1.4a Installation and Operation Guide
The AJA Hi5-3D is a 3D video multiplexer that combines two 3G or HD-SDI inputs into various multiplexed 3D formats for output on HDMI 1.4a and HD-SDI. It supports non-3D SD/HD-SDI inputs passed to the HDMI output and includes features such as 10-bit HDMI 1.4a support, frame-sync mode, and anaglyph mode for calibrating 3D camera rigs. The device also provides an additional 2-channel RCA jack audio output.
Read onlineAJA Hi5 specifications
| Input Formats | 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30 |
|---|---|
| Video Input Type | HD-SDI/SDI, SMPTE-259/274/292/296 |
| HDMI Output Resolution | 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 |
| Power Requirement | +5 VDC regulated, 3 watts |
All AJA Hi5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does the Hi5 support embedded audio?
Yes, it supports full HDMI features including 10-bit video and 8 channels of embedded audio.
What is the looping output used for?
The equalized looping SDI/HD-SDI output is useful for connecting additional equipment or daisy chaining multiple monitors.
What software is used to configure the Hi5-3G?
The Hi5-3G can be configured using a supplied software application called 'Mini Config' for PCs and Macs.
From: AJA Hi5-3G 3G/HD/SD-SDI to HDMI 1.3a Video and Audio Converter Installation and Operation Guide
Can the Hi5-3G be used out of the box?
Yes, the Hi5-3G can usually be used right out of the box for most applications as it recognizes inputs and performs standard actions automatically by default.
From: AJA Hi5-3G 3G/HD/SD-SDI to HDMI 1.3a Video and Audio Converter Installation and Operation Guide
What 3D modes does the Hi5-3D support?
The Hi5-3D supports 'side-by-side', 'top-bottom', and 'frame-packing' 3D modes depending on the video format.
From: AJA Hi5-3D HD-SDI Multiplexer to HDMI 1.4a Installation and Operation Guide
How is the Hi5-3D configured?
Configuration can be done via dipswitches or using the supplied AJA Mini Config application on a PC or Mac.
From: AJA Hi5-3D HD-SDI Multiplexer to HDMI 1.4a Installation and Operation Guide
