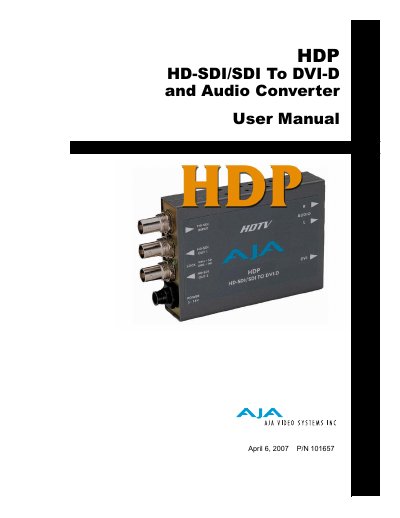

This document is a user manual for the HDP HD-SDI/SDI To DVI-D and Audio Converter. It describes the features and characteristics of the product.
The AJA HDP is a miniature converter designed to transform HD-SDI or SDI video signals into DVI-D for use with LCD or Plasma monitors. It features a high-quality scaling engine that automatically adapts 4x3 or 16x9 inputs to various monitor resolutions, including 1920x1200, and supports automatic frame rate adaptation. Additionally, the device provides two-channel RCA-style audio monitoring and two looping outputs for the SDI inputs.
| Input Formats | HD-SDI/SDI |
|---|---|
| Output Format | DVI-D |
| Max Monitor Resolution | 1920 x 1200 |
| Audio Output | 2 channel RCA style |
| SDI Loop Outputs | 2 |
| Power Supply | 5-18V |
The HDP is designed for use as a general monitoring device for applications such as post-production reference monitoring, client monitoring, and presentation.
The HDP is a miniature converter that transforms HD-SDI/SDI signals into DVI-D for use with LCD or Plasma monitors.
The device automatically sizes inputs that are either 4 x 3 or 16 x 9 aspect ratios.
The converter provides two channels of RCA style audio monitoring.
