Motorola MC10E196/MC100E196 Programmable Delay Chip Datasheet

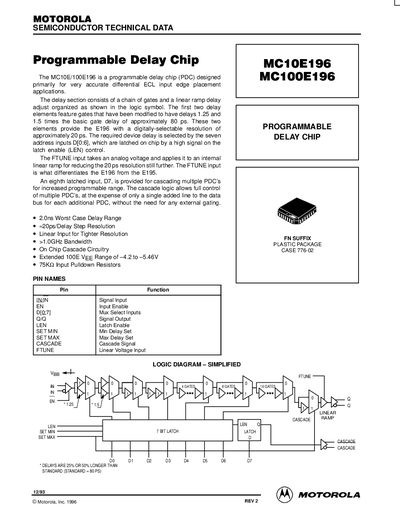

Motorola MC10E196/MC100E196 Programmable Delay Chip Datasheet - cover page
Brand
Motorola
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
8
File format
PDF
File size
91 KB
Published
09 July, 2012
Updated
29 September, 2023
MD5 checksum
F6400F8F3EA2F5F3BDF328EA1DCD41BE

About this manual

The MC10E196 and MC100E196 are programmable delay chips (PDC) designed primarily for very accurate differential ECL input edge placement applications. The delay section consists of a chain of gates and a linear ramp delay adjust organized as shown in the logic symbol. The first two delay elements feature gates that have been modified to have delays 1.25 and 1.5 times the basic gate delay of approximately 80 ps.

The required device delay is selected by the seven address inputs D[0:6], which are latched on chip by a high signal on the latch enable (LEN) control. An eighth latched input, D7, is provided for cascading multiple PDC's for increased programmable range. The FTUNE input takes an analog voltage and applies it to an internal linear ramp for reducing the 20 ps resolution still further.

What's inside

  • Programmable Delay Chip
  • Pinout
  • DC Characteristics
  • AC Characteristics
  • Analog Input Characteristics
  • Using the FTune Analog Input
  • Cascading Multiple E196s
  • To Select Multiplexers

Specifications

Worst Case Delay Range2.0ns
Delay Step Resolution~20ps
Bandwidth>1.0GHz
Input Pulldown Resistors75KQ
Package TypePLASTIC PACKAGE CASE 776-02
Package Type28-Lead PLCC
Power Supply Current (100E)150 mA

Frequently asked questions

What is the primary application of the MC10E196?

It is designed primarily for very accurate differential ECL input edge placement applications.

How is the required device delay selected?

The required device delay is selected by the seven address inputs D[0:6], which are latched on chip by a high signal on the latch enable (LEN) control.

What differentiates the E196 from the E195?

The FTUNE input takes an analog voltage and applies it to an internal linear ramp for reducing the 20 ps resolution still further.

What is the function of the D7 input?

An eighth latched input, D7, is provided for cascading multiple PDC's for increased programmable range.
