Motorola MC10E167/MC100E167 Datasheet

The MC10E/100E167 is a 6-bit 2:1 multiplexer with single-ended outputs. Input data is selected by the Select control (SEL) and transferred to the flip-flop outputs by a positive edge on CLK1 or CLK2. A HIGH on the Master Reset (MR) pin asynchronously forces all Q outputs LOW.

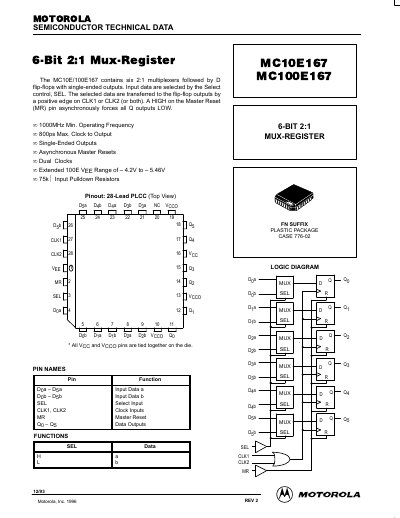

Motorola MC10E167/MC100E167 Datasheet - cover page
Brand
Motorola
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
67 KB
Published
09 July, 2012
Updated
29 September, 2023
MD5 checksum
656D59414A27A99ED9232DCA2C69346E

About this manual

This document is a technical datasheet for the Motorola MC10E167 and MC100E167 integrated circuits. The device contains six 2:1 multiplexers followed by D flip-flops with single-ended outputs. Data selection is controlled by the SEL pin, while data transfer occurs on the positive edge of CLK1 or CLK2 clocks.

What's inside

  • Pinout
  • Functions
  • DC Characteristics
  • AC Characteristics
  • Outline Dimensions

Specifications

Operating Frequency (Min)1000MHz
Clock to Output Delay (Max)800ps
Package Type28-Lead PLCC
Supply Voltage Range (100E)-4.2V to -5.46V

Frequently asked questions

What is the function of the MR pin?

A HIGH on the Master Reset (MR) pin asynchronously forces all Q outputs LOW.

How is data transferred to the flip-flop outputs?

The selected data are transferred by a positive edge on CLK1 or CLK2.
