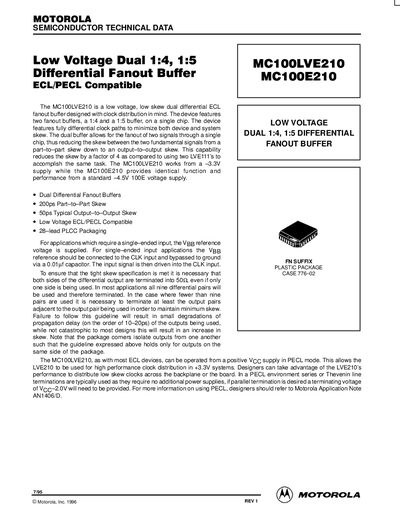

The Motorola MC100LVE210 and MC100E210 are low voltage, low skew dual differential ECL fanout buffers designed specifically for clock distribution applications. The device integrates two fanout buffers, a 1:4 and a 1:5 buffer, on a single chip to minimize device and system skew. The MC100LVE210 operates from a -3.3V supply, while the MC100E210 provides identical function and performance from a standard -4.5V supply.
| Part-to-Part Skew | 200ps |
|---|---|
| Output-to-Output Skew | 50ps Typical |
| Package Type | 28lead PLCC |
| Supply Voltage (LVE210) | -3.3V |
| Supply Voltage (E210) | -4.5V |
| Minimum Input Swing | 500mV |
The MC100LVE210 operates from a -3.3V supply, while the MC100E210 operates from a standard -4.5V supply.
Yes, the device is ECL/PECL compatible and features fully differential clock paths.
Yes, it can be operated from a positive Voc supply in PECL mode for high performance clock distribution in +3.3V systems.
