Motorola MC10E196/MC100E196 Programmable Delay Chip Datasheet

The MC10E/100E196 is a programmable delay chip (PDC) designed primarily for very accurate differential ECL input edge placement applications. The delay section consists of a chain of gates and a linear ramp delay adjust organized as shown in the logic symbol. The first two delay elements feature gates that have been modified to have delays 1.25 and 1.5 times the basic gate delay of approximately 80 ps. These two elements provide the E196 with a digitally-selectable resolution of approximately 20 ps. The required device delay is selected by the seven address inputs D[0:6], which are latched on chip by a high signal on the latch enable (LEN) control. The FTUNE input takes an analog voltage and applies it to an internal linear ramp for reducing the 20 ps resolution still further. The FTUNE input is what differentiates the E196 from the E195. An eighth latched input, D7, is provided for cascading multiple PDC’s for increased programmable range. The cascade logic allows full control of multiple PDC’s, at the expense of only a single added line to the data bus for each additional PDC, without the need for any external gating.

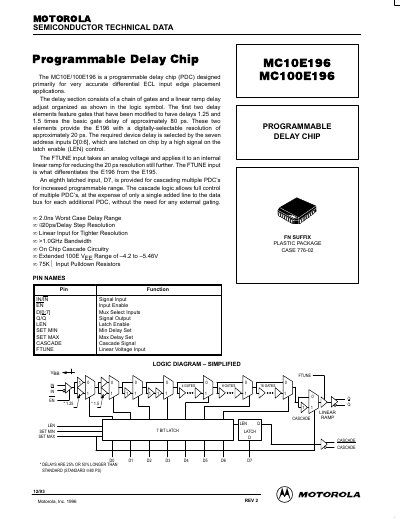

Motorola MC10E196/MC100E196 Programmable Delay Chip Datasheet - cover page
Brand
Motorola
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
8
File format
PDF
File size
91 KB
Published
09 July, 2012
Updated
30 September, 2023
MD5 checksum
52482755C808181D8DC6F439F41B0146

About this manual

The MC10E196 and MC100E196 are programmable delay chips (PDC) designed primarily for very accurate differential ECL input edge placement applications. The delay section consists of a chain of gates and a linear ramp delay adjust organized as shown in the logic symbol. The first two delay elements feature gates that have been modified to have delays 1.25 and 1.5 times the basic gate delay of approximately 80 ps.

What's inside

  • Programmable Delay Chip
  • Differential ECL Input
  • Delay Section
  • FTUNE Input
  • Cascade Circuitry
  • Pinout
  • DC Characteristics
  • AC Characteristics
  • Analog Input Characteristics
  • Cascading Multiple E196s

Specifications

Worst Case Delay Range2.0ns
Delay Step Resolution~20ps
Bandwidth>1.0GHz
Input Pulldown Resistors75KQ
Package TypePLASTIC PACKAGE CASE 776-02
Supply Voltage Range (100E)-4.2 to -5.46V

Frequently asked questions

What is the primary application of the MC10E196?

It is designed primarily for very accurate differential ECL input edge placement applications.

How does the MC10E196 differ from the E195?

The MC10E196 includes an FTUNE input that takes an analog voltage to apply to an internal linear ramp for reducing resolution further.

What is the function of the D7 input?

The D7 input is provided for cascading multiple PDCs for increased programmable range.
