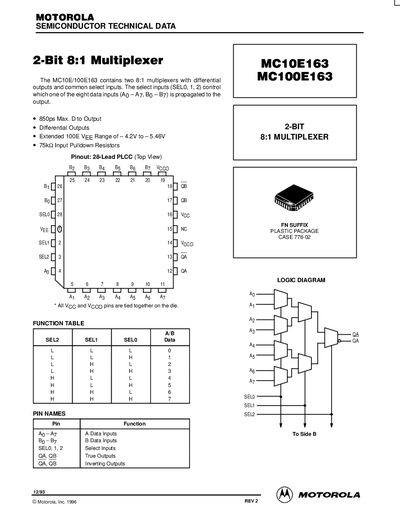

The MC10E/100E163 are two 8:1 multiplexers with differential outputs and common select inputs, produced by Motorola. The select inputs (SEL0, 1, 2) control which one of the eight data inputs (A0-A7, B0-B7) is propagated to the output.
This document describes the MC10E163 and MC100E163, two 8:1 multiplexers featuring differential outputs and common select inputs. The devices propagate one of eight data inputs to the output based on control signals.
The datasheet provides detailed DC and AC electrical characteristics, including propagation delays, input currents, and power supply specifications for both the standard (10E) and extended voltage range (100E) versions.
| Product Type | 2-Bit 8:1 Multiplexer |
|---|---|
| Output Type | Differential Outputs |
| Max Delay to Output | 850ps |
| Input Pulldown Resistors | 75kQ |
| Voltage Range (100E) | -4.2V to -5.46V |
| Package Type | 28-Lead PLCC |
The maximum delay from data to output is 850ps.
The device contains two 8:1 multiplexers.
The extended 100E version operates from -4.2V to -5.46V.
