The MC10E/100E151 is a 6-BIT D REGISTER produced by Motorola Corporation. It has 1100MHz Min. Toggle Frequency, Differential Outputs, Asynchronous Master Reset, Dual Clocks, Extended 100E VEE Range of – 4.2V to – 5.46V, 75kΩ Input Pulldown Resistors and other features.

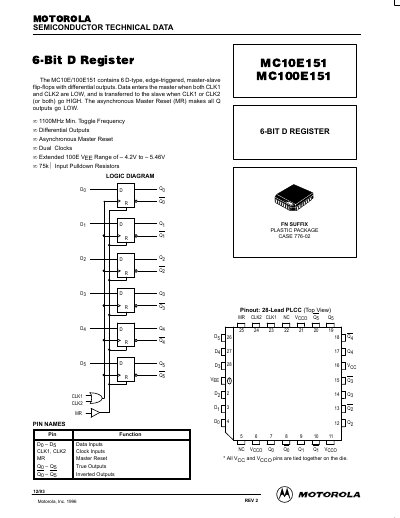

This document is a technical datasheet for the Motorola MC10E151 and MC100E151 integrated circuits. The devices contain six edge-triggered, master-slave D-type flip-flops with differential outputs. Key features include asynchronous master reset capability, dual clock inputs (CLK1 and CLK2), and an extended VEE voltage range for the 100E variant.
| Number of Flip-Flops | 6 |
|---|---|
| Max Toggle Frequency (10E) | 1100 MHz Min. |
| Max Toggle Frequency (100E) | 1400 MHz |
| Package Type | 28-Lead PLCC |
| Case Number | 776-02 |
The asynchronous Master Reset (MR) makes all Q outputs go LOW.
Data is transferred to the slave when CLK1 or CLK2 (or both) go HIGH.
