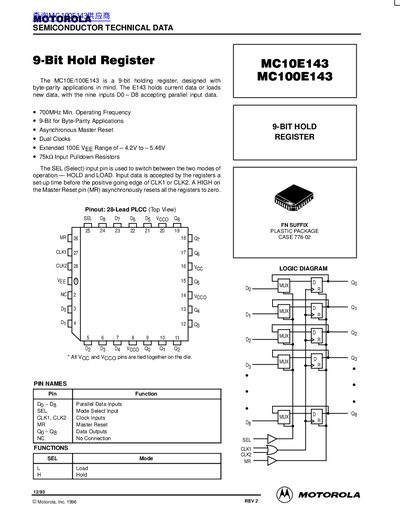

The MC10E/100E143 is a 9-bit holding register, designed with byte-parity applications in mind. The E143 holds current data or loads new data, with the nine inputs D0 – D8 accepting parallel input data.
The MC10E/100E143 is a 9-bit holding register designed specifically for byte-parity applications. It features dual clocks, an asynchronous master reset, and operates with a minimum frequency of 700MHz. The device accepts parallel input data through nine inputs (D0-D8) and includes a Select (SEL) pin to switch between HOLD and LOAD modes.
| Operating Frequency (Min) | 700MHz |
|---|---|
| Number of Bits | 9-bit |
| Package Type | 28-Lead PLCC |
| Supply Voltage Range (100E) | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kΩ |
It is designed with byte-parity applications in mind.
The SEL (Select) input pin switches between HOLD and LOAD modes.
It asynchronously resets all registers to zero.
