2PD1820A is an NPN general purpose transistor with features of high current (max. 500 mA), low voltage (max. 50 V) and low collector-emitter saturation voltage (max. 600 mV). The transistor is suitable for general purpose switching and amplification applications, especially for portable equipment.

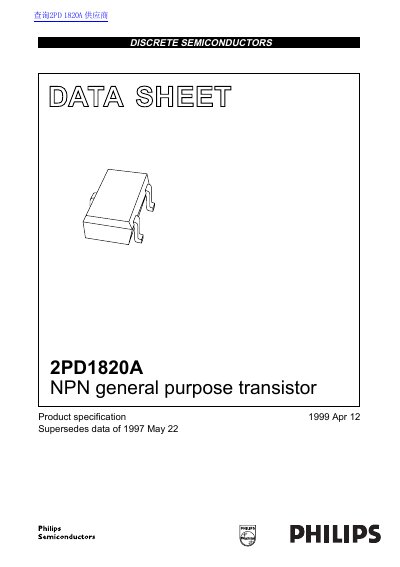

The document is a technical specification sheet for the Philips 2PD1820A, which is an NPN general-purpose transistor. It features high current capabilities up to 500 mA and low voltage operation with a maximum of 50 V. The device is designed for applications such as general purpose switching and amplification, particularly in portable equipment.
| Collector current (DC) | 500 mA |
|---|---|
| Peak collector current | 1 A |
| Collector-base voltage | 60 V |
| Collector-emitter saturation voltage | 600 mV |
| Package type | SC-70; SOT323 plastic package |
The maximum collector current is 500 mA.
The maximum collector-emitter saturation voltage is 600 mV.
The maximum power dissipation is 200 mW.
