BCV65 is a NPN/PNP general purpose transistor featuring low current (max. 100 mA) and low voltage (max. 30 V). This transistor is widely used in general switching and amplification.

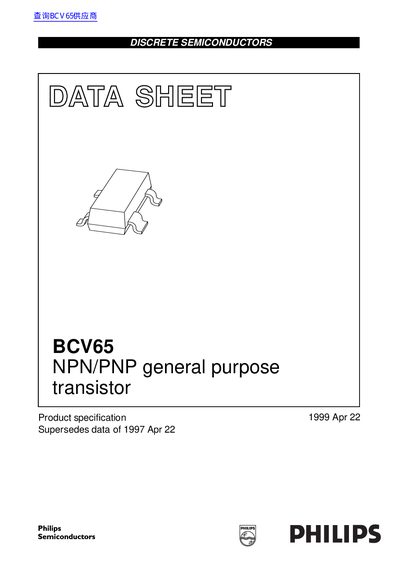

The Philips BCV65 is an NPN/PNP matched pair transistor housed in a plastic SOT143B surface-mounted package. It is designed for general purpose switching and amplification applications with a maximum collector current of 100 mA and a maximum voltage rating of 30 V.
The document details the limiting values, pinning, thermal characteristics, and electrical characteristics of the device. It includes specific data for collector-base voltage, collector-emitter voltage, collector current, and current gain under various conditions.
| Collector current (DC) | 100 mA |
|---|---|
| Peak collector current | 200 mA |
| Collector-base voltage | 30 V |
| Collector-emitter voltage | 30 V |
| Total power dissipation | 250 mW |
| Storage temperature | -65 to +150 °C |
| Junction temperature | 150 °C |
| DC current gain | 75 to 800 |
The BCV65 is intended for general purpose switching and amplification.
The transistor is available in a plastic SOT143B surface mounted package.
The maximum operating ambient temperature is +150 °C.
