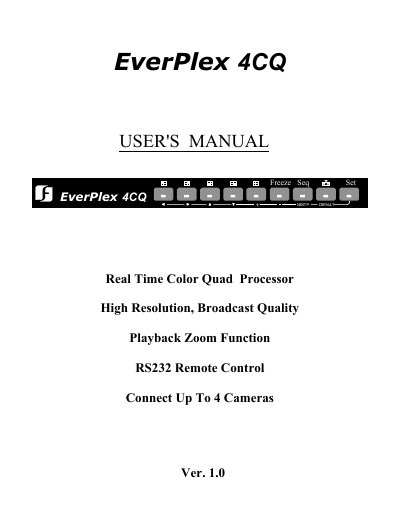

EverPlex 4CQ USER'S MANUAL introduces the function and features of the product, as well as how to connect and set up.
The EverFocus EverPlex 4CQ is a real-time color quad processor and 4-channel auto switcher designed for high-resolution, broadcast-quality video playback and multi-camera monitoring. It supports up to four camera inputs and one VCR input, featuring a quad display mode, full-screen zoom, and freeze functions. The device allows independent adjustment of brightness, contrast, color, and tint for each channel, along with built-in timer and title generation capabilities. This manual is written in Chinese.
| Video input | 4 cameras + 1 VCR inputs |
|---|---|
| Video output | Video output x 2, 1V p-p/75 ohm |
| Resolution | 720 x 576 (PAL), 720 x 480 (NTSC) |
| Colors | 16 million colors |
| Power source | AC 24V or DC 12V |
| Power consumption | 17W max. |
| Dimension | 239 x 166 x 55 mm |
| Alarm input | 4 alarm inputs and 1 alarm reset input |
| Alarm output | 2 Alarm Out (1 Normally Open, 1 Normally Closed) |
| Transmission setting | 9600 baud rate, 1 start bit, 1 stop bit and no parity |
The transmission setting is 9600 baud rate, 1 start bit, 1 stop bit and no parity.
Alarm messages consist of three ASCII characters followed by carriage return and line feed, indicating alarm type and channel number.
Yes, the EverPlex 4CQ can be controlled by a computer or terminal via the standard 9 pin D-sub/RS232 connector.
The device supports 720 x 576 for PAL and 720 x 480 for NTSC formats.
