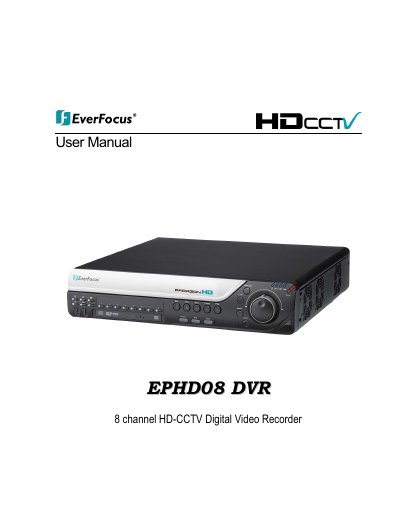

EverFocus EPHD08 8-Channel HD-CCTV DVR User Manual

This document is the user manual of EPHD08 DVR

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 142
File format: PDF
File size: 4.5 MB
Published: 09 July, 2012
Updated: 30 September, 2023
Model: EPHD08
MD5 checksum: 17EDFF1DBFFC6D120E3AE5F1D7F1C220
PDF: EverFocus EPHD08 8-Channel HD-CCTV DVR User Manual PDF

About this manual

This manual provides comprehensive instructions for the EverFocus EPHD08, an 8-channel HD-CCTV Digital Video Recorder. It details safety precautions, installation procedures for video, audio, and alarm systems, and explains how to connect the device to a network for remote viewing. The guide covers both front panel and mouse-based operation.

What's inside

Product Overview
Installation
Mouse and Front Panel Operation
DVR Operation
DVR Configuration
Network Setup
Remote Operation
Troubleshooting

Specifications

Channels	8 channel
Product Type	DVR
Operating Temperature	0°C~40°C (32°F~104°F)
Relative Humidity	20%~80%
Power Input	12VDC

Frequently asked questions

What is the operating temperature range for the EPHD08?

The device should be used at indoor temperatures between 0°C and 40°C (32°F to 104°F).

What is the recommended relative humidity for operation?

The unit should operate at a relative humidity between 20% and 80%.

What is the input power source for the DVR?

The input power source is 12VDC, though it can be powered by a supply operating from 100~240VAC.
