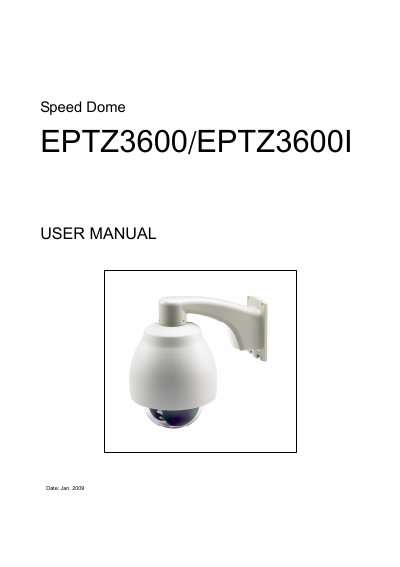

This document is the user manual of Speed Dome EPTZ3600/EPTZ3600I, introducing the features and characteristics of the product, including specifications, functions, installation and setup.
The document provides a comprehensive guide for the EverFocus EPTZ3600 (outdoor) and EPTZ3600I (indoor) speed dome cameras. It details product features such as 36x optical zoom, true day/night functionality with an IR cut filter, wide dynamic range, and motion detection capabilities suitable for various environments like banks and airports.
The manual includes instructions for initial setup using the EKB500 keyboard or compatible DVRs, covering address setting, communication protocols (RS-485), and baud rates. It also explains how to configure camera settings via the menu system, including video parameters, position presets, cruise tours, alarm inputs/outputs, and privacy zones. This manual is written in Chinese.
| Pickup Device | SONY 1/4" EX-view HAD CCD |
|---|---|
| Horizontal Resolution | 530 TV Lines |
| Lens Type | 36x optical zoom, f=3.4 mm (wide) to 122.4mm (tele) |
| Power Source | 24VAC |
| Dimensions | 180mm(W) x 270mm(H) |
The EPTZ3600 series has two types: EPTZ3600 is for outdoor use, whereas EPTZ3600I is for indoor use.
There are 192 preset positions available.
It supports EVF-1, EVF-2, Pelco-P, Pelco-D, A-Type, Plus-D, AUTO, and Panasonic.
