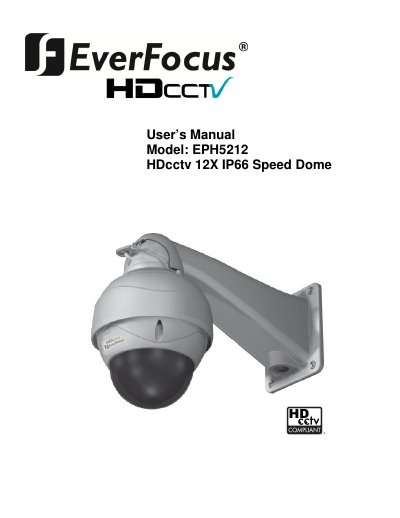

EverFocus EPH5212 HDcctv Speed Dome User's Manual

This manual introduces the function and usage of EPH5212 HDcctv 12X IP66 Speed Dome.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 37
File format: PDF
File size: 2 MB
Published: 09 July, 2012
Updated: 01 October, 2023
MD5 checksum: A1EC0CA7F859B79A1DC1D51812051C35
PDF: EverFocus EPH5212 HDcctv Speed Dome User's Manual PDF

About this manual

The EverFocus EPH5212 is an HDcctv IP66 speed dome camera featuring a 1/2.8" Sony Exmor R progressive scan 2.1 megapixel CMOS sensor. It supports 1080p or 720p resolution with 12x optical zoom and 10x digital zoom, offering true day/night capability and various image enhancement functions like DNR and BLC.

What's inside

Overview
Installation and Connection
Program and Operation
Troubleshooting
Specifications

Specifications

Sensor Type	1/2.8" Sony Exmor R progressive scan 2.1 megapixel CMOS sensor
Optical Zoom	12x optical plus 10x digital (120x total)
Resolution	1920x1080 or 1280x720 HD video
Pan Range	360° 'endless rotation'
Tilt Range	180° with digital auto-flip
Preset Positions	210 Preset Positions
Power Source	24VAC
Weather Resistance	IP66 Weather Resistant with built in heater to operate to -40 degrees

Frequently asked questions

What protocols does the EPH5212 support?

The camera responds to EVF-1, Pelco-P, and Pelco-D protocol formats.

What is the maximum digital zoom capability?

The camera features 10x usable digital zoom, resulting in a total zoom ratio of 120x.
