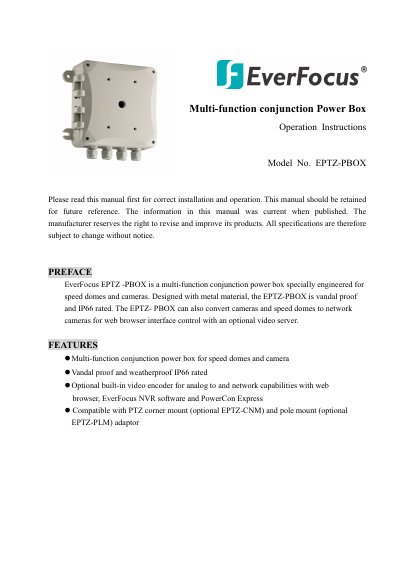

This document is the EPTZ-PBOX multi-function conjunction power box product manual.
The EverFocus EPTZ-PBOX is a multi-function conjunction power box designed for speed domes and cameras. It is engineered from metal materials to be vandal-proof and weatherproof with an IP66 rating. The unit features optional built-in video encoder capabilities for converting analog cameras to network cameras, compatible with EverFocus NVR software and PowerCon Express. It supports both corner and pole mounting configurations via optional adaptors.
| Power source | 100V~120VAC / 220V~240VAC |
|---|---|
| Power output | 24VAC/3.5A |
| Waterproof connector | ψ10 mm x 1 pcs , ψ7 mm x 3 pcs |
| Dimensions | 250 mm x 260 mm x 85 mm |
| Weight | 4.08 kg / 9 lbs |
| Fuse specification | 250V/2A |
| IP Rating | IP66 |
The power output for the PTZ is 24VAC/3.5A.
The required fuse specification is 250V/2A.
Yes, it is compatible with the optional EPTZ-PLM pole mount adaptor.
