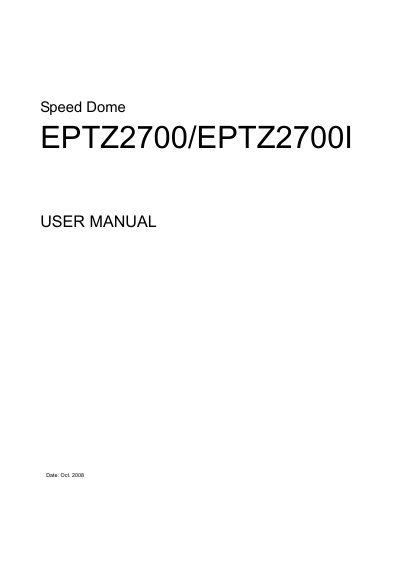

This manual provides an introduction of the features and characteristics of EPTZ2700/EPTZ2700I speed dome, as well as the installation and usage methods.
The EverFocus EPTZ2700 series includes two models: the EPTZ2700 for outdoor use with IP66 protection, and the EPTZ2700I for indoor environments. Both units feature a built-in 27x optical zoom lens, high-resolution CCD sensors, and True Day/Night functionality using an ICR (IR cut filter removable) design to ensure clear color images in daylight and low-light conditions.
| Pickup Device | 1/4 CCD |
|---|---|
| Horizontal Resolution | More than 480 TV Lines |
| Zoom Ratio | 270x max (27x Optical and x 10 Digital zoom) |
| Power Source | 24VAC |
| Communication Protocol | RS-485 |
| Preset Positions | 192 positions |
The EPTZ2700 is an outdoor type model, whereas the EPTZ2700I is an indoor type model.
The horizontal rotation range is unlimited at 360 degrees, and the tilt rotation range is a 90 degree pendulum motion.
The camera supports EVF-1, EVF-2, Pelco-P, Pelco-D, A-Type, Plus-D, AUTO, and Panasonic protocols.
