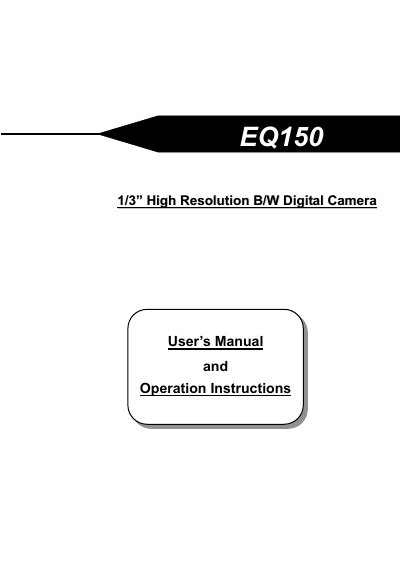

This manual is the user manual and operation instructions for the EQ150 digital camera, which introduces the specifications, major parts and their functions, installation instructions, and safety warnings of the product.
This document serves as the User's Manual and Operation Instructions for the EverFocus EQ150 series, a solid-state black and white digital camera designed for high-quality surveillance applications. The manual provides essential safety warnings, including precautions against electric shock, environmental hazards, and improper handling of the CCD sensor. It details the installation process for attaching C-mount or CS-mount lenses and connecting the video output to a monitor.
| Pickup Device | 1/3" SONY B/W CCD |
|---|---|
| Picture Elements | 768x494 (EIA) / 752 x 582 (CCIR) |
| Horizontal Resolution | 560 TV lines |
| Sensitivity | 0.01 lux/F=1.2 |
| S/N Ratio | Over 48 dB |
| Electronic Shutter | 1/50(1/60)~1/100,000 sec |
| Power Source | 12VDC/24VAC;90~260VAC |
| Dimensions | 50mm(H) x 57mm (W) x 140.2mm(D) |
The camera should be installed where the temperature stays between 0°C to 50°C (32°F to 122°F).
Yes, the camera is convenient to use with C-mount or CS-mount lenses.
A 75 ohm type coaxial cable with a BNC female connector is required.
