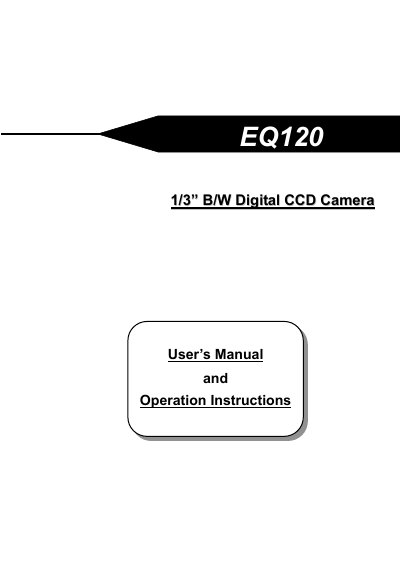

EQ120 Camera User Manual, explains the camera's use and installation precautions
This manual provides operation instructions and safety warnings for the EverFocus EQ120 series, a solid-state B/W video camera designed for high-quality surveillance applications. It details the camera's features, including its 1/3" B/W CCD pickup device and sophisticated DSP circuitry. This manual is written in Chinese.
| Pickup Device | 1/3" SONY B/W CCD |
|---|---|
| Horizontal Resolution | 420 TV lines |
| Sensitivity | 0.01 lux/F=1.2 |
| Electronic Shutter | 1/50(1/60) ~ 1/100,000 sec |
| Power Source | 12VDC/24V AC, 90~260V AC |
| Power Consumption | 5W max |
| Operating Temperature | 0°C~50°C |
The camera should be installed where the temperature range stays between 0°C to 50℃ (32℉ to 122℉).
Yes, the camera is convenient to use with either C-mount or CS-mount lenses.
The video output is BNC 1.0Vp-p, 75 ohm.
