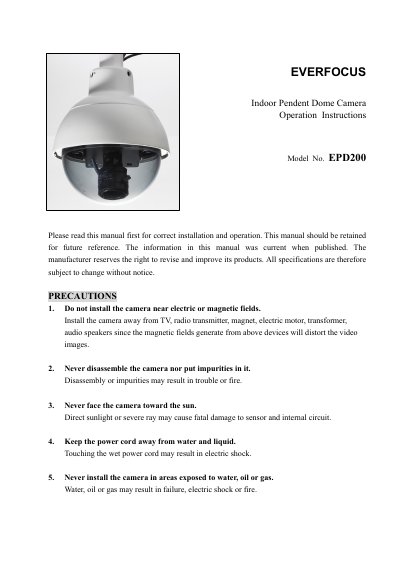

This file is EVERFOCUS Indoor Pendent Dome Camera Operation Instructions' manual, which introduces the installation, use, precautions, etc. of the product.
This manual provides operation instructions for the EverFocus EPD200, a compact indoor pendent dome camera featuring a 1/3" SONY CCD sensor. It includes precautions for installation, cleaning procedures, and hardware overview for both vari-focal and fixed lens models.
The document details the installation process, including mounting the camera on a conduit pipe and adjusting the lens. It also explains how to configure camera settings such as Back Light Compensation (BLC), Automatic Gain Control (AGC), Flickerless (FL), and Electronic Shutter (ES) to optimize video quality under various lighting conditions.
| Pickup Device | 1/3" SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 380 TVL |
| Sensitivity | 3 Lux /F=1.2 |
| Power Source | 12VDC/24VAC |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 20%~80% |
| Weight | 3 kg |
| Dimensions | 110mm(W)x 125(H) |
The camera should be used at temperatures within 0°C to 50°C.
No, do not install the camera near electric or magnetic fields as they will distort video images.
The input power source is 12VDC or 24VAC.
