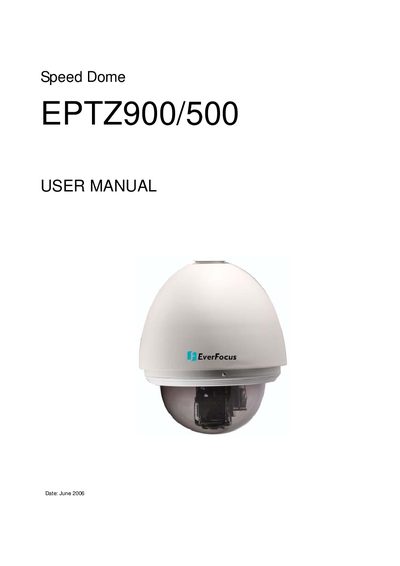

Speed Dome EPTZ900/500 User Manual introduces Speed Dome EPTZ900/500's overview, specifications, features, connection, installation, camera setup menu, function setup and operation, etc.
The EverFocus EPTZ900 and EPTZ500 are intelligent high-speed dome cameras designed for omni-directional monitoring. These models feature an 18x optical zoom combined with 12x digital zoom, supported by a high-performance chip to ensure clear and vivid captured images. The cameras support both PAL and NTSC image formats and include advanced functions such as auto focus, auto iris, white balance, and backlight compensation to adapt to various lighting conditions.
| Pickup Device | 1/4" type Sony Super HAD CCD |
|---|---|
| Video Format | NTSC or PAL |
| Horizontal Resolution | 480 TVL |
| Lens Type | 18x optical zoom |
| Zoom Ratio | 216x max |
| Power Source | 24VAC |
| Communication | RS-485 |
| Preset Positions | 192 positions |
| Operating Temperature | -40°C~ 50°C |
| Weatherproof Ratings | IP66 Indoor |
The maximum zoom ratio is 216x, achieved by combining 18x optical and 12x digital zoom.
The camera supports up to 192 preset positions.
The camera supports Auto, EVF, Plus-D, A-Type, Pelco-D, and Pelco-P protocols.
Yes, it provides 4 alarm inputs and 1 alarm output with tour/position auto triggering.
