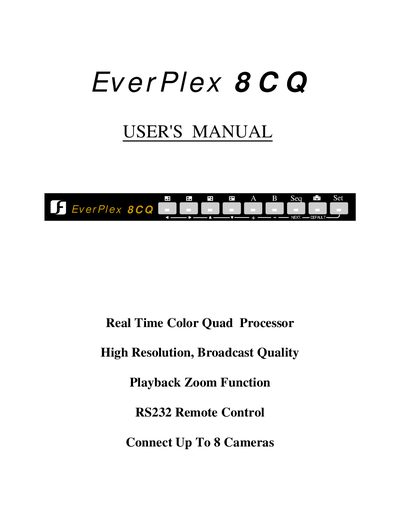

This manual introduces the functions and usage of EverPlex 8 C Q.
The EverFocus EP8CQ is a real-time color quad processor designed for high-resolution, broadcast-quality playback and multi-camera monitoring. It supports up to 8 camera inputs plus one VCR input, featuring CCIR601 full resolution with 16 million colors. The device allows for two-page quad display or sequential switching modes.
| Video Input | 8 cameras + one VCR inputs |
|---|---|
| Resolution | 720 x 576 (PAL), 720 x 480 (NTSC) |
| Colors | 16 million colors |
| Power Source | AC 10~24V or DC 12V |
| Power Consumption | 17W max. |
The transmission setting in EverPlex 8CQ is 9600 baud rate, 1 start bit, 1 stop bit and no parity.
Yes, EverPlex 8CQ may be controlled by a computer or a terminal via the standard 9 pin D-sub/RS232 connector.
