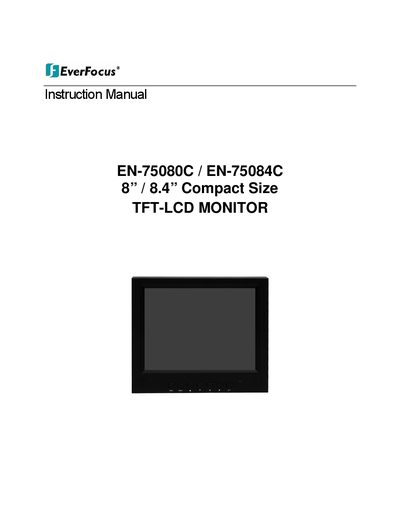

This manual provides detailed information on the EN-75080C / EN-75084C 8” / 8.4” Compact Size TFT-LCD MONITOR safety, warnings, connecting external equipment, controls and functions, mounting instructions, D-SUB connector pin assignments, power management, specifications, troubleshooting, etc.
This instruction manual covers the 8" and 8.4" Compact Size TFT-LCD Monitors manufactured by EverFocus Electronics Corp. It includes essential safety instructions, cautions regarding electrical shock and ventilation, and FCC compliance statements for Class A digital devices in residential installations.
The document details how to connect external equipment, describes controls and functions, provides a mounting guide, lists D-SUB connector pin assignments, explains power management features, and offers troubleshooting advice. It also includes specifications and correct disposal information according to WEEE regulations.
| Product Type | TFT-LCD MONITOR |
|---|---|
| Screen Sizes | 8 inch and 8.4 inch |
This equipment complies with the limits for a Class A digital device.
This manual covers two models with screen sizes of 8 inches and 8.4 inches.
You must maintain a minimum distance of 10cm around the apparatus.
The power supply cord uses a polarized or grounding-type plug with two blades and one wider blade.
