42-inch TFT-LCD display user manual

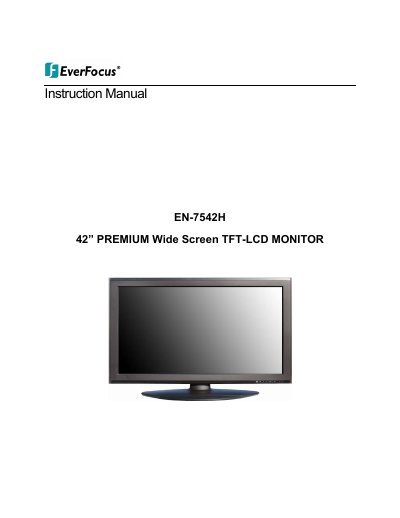

This instruction manual covers the safe operation and setup of the EverFocus EN-7542H 42-inch Premium Wide Screen TFT-LCD Monitor. It includes detailed sections on safety precautions, connecting external equipment, and utilizing remote control functions for various input sources including HDMI, DVI, and VGA.
The document further details the physical controls and on-screen display (OSD) menu options for adjusting picture and sound settings. It also provides a mounting guide, pin assignments for the D-SUB connector, power management information, technical specifications, and a troubleshooting guide for common issues.
| Diagonal Size | 42 inches |
|---|---|
| Resolution (WXGA) | 1366X768 @60Hz |
| Resolution (WUXGA) | 1920X1080 @60Hz |
| Brightness | 500cd/㎡ (Typical) |
| Contrast Ratio | 1100:1 (Typical) / 1300:1 (Typical) |
| Response Time | 5msec (G-to-G) |
| Viewing Angle | 178°/178° (H/V) |
| Pixel Pitch | 0.681mm(H) x 0.681mm(V) |
| Net Weight | 31kg (68.34 lbs) |
| Gross Weight | 39kg (85.98 lbs) |
| Electrical Ratings | AC100-240V, 50/60Hz |
The monitor supports HDMI, DVI, PC VGA, PC Stereo, Component, S-Video, and AV inputs.
Press the POWER button on the remote controller; there will be a few seconds delay before the display appears.
The packing dimensions are 1300mm x 885mm x 390mm (51.18" x 34.84" x 15.35").
No, the unit is designed for office or home use and should not be exposed to rain, moisture, vibrations, dust, or corrosive gases.
