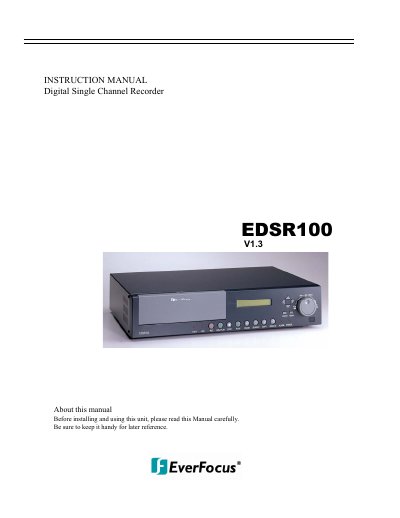

EverFocus EDSR100 Digital Single Channel Recorder Instruction Manual

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 55
File format: PDF
File size: 1.2 MB
Published: 09 July, 2012
Updated: 29 September, 2023
Model: EDSR100
MD5 checksum: E27B96254E7C88CE140F68184AB2C3E6
PDF: EverFocus EDSR100 Digital Single Channel Recorder Instruction Manual PDF

About this manual

The EverFocus EDSR100 is a digital single channel recorder designed as a VCR replacement for the security industry. It features high-resolution video multiplexing, digital recording with M-JPEG compression, and operates at speeds up to 60/50 images per second in NTSC/PAL formats.

What's inside

Product Overview
Specifications
Front & Rear Panels
Back Panel Connections
System Connection
Installation
Menu Setup
Recording
Playback
Remote Controller

Specifications

Operating Temperature	0℃~+50℃
Power Source	AC90~265V
Video Resolution (NTSC)	720x484
Video Compression	M-JPEG
Hard Disk Storage	3.5" IDE type, Hot-swappable
Power Consumption	39W

Frequently asked questions

What is the operating temperature range for this unit?

The unit should be operated within a temperature range of 0℃ to +50℃.

Can I replace the hard drive while the system is running?

Yes, the unit features a hot-swappable 3.5" IDE type hard disk storage.

Does this recorder support audio recording?

Yes, the EDSR100 includes audio recording capability.

Download PDF (1.2 MB)
