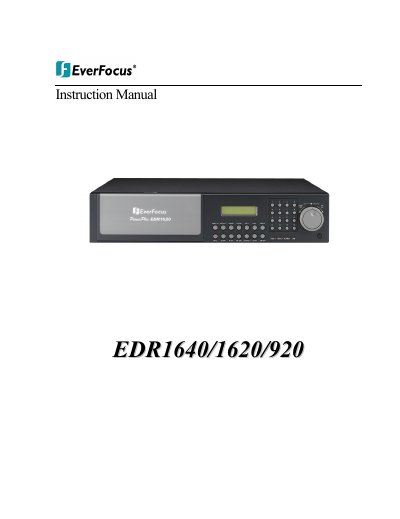

This manual introduces the features and operation of the EverFocus EDR1640 / 1620 / 920.
This document serves as the official instruction guide for the EverFocus EDR1640, EDR1620, and EDR920 Digital Video Recorders. It covers product features, specifications, and safety precautions, along with detailed guidance on hardware installation, including video, audio, and network connections. The guide also explains optional components like the EDA800 alarm board and mouse installation.
| Video Input | 16 / 9BNC camera inputs (1Vp-p/75ohm) |
|---|---|
| Video Output | 1 BNC video out (1Vp-p/75ohm) for Main Monitor |
| Recording Resolution (EDR1640) | 720x480 (NTSC:120IPS) / 720x576 (PAL:100IPS) |
| Recording Resolution (EDR1620) | 720x480 (NTSC: 60 IPS) / 720x576 (PAL: 50IPS) |
| Recording Resolution (EDR920) | 720x480 (NTSC: 60 IPS) / 720x576 (PAL: 50IPS) |
| Hard Disk Storage | Two Hot-Swappable 3.5" IDE Hard Disk |
| Recording Rate (EDR1640) | Up to 480 IPS for NTSC (400 IPS for PAL) |
| Recording Rate (EDR1620/920) | Up to 240 IPS for NTSC (200 IPS for PAL) |
| Network Communication | RJ45 connector for 10/100 Mbps network communication |
| RS-485 Transmission Speeds | 1200 baud, 2400 baud, 4800 baud, 9600 baud, 19200 baud, and 3840 baud |
The default setting from the factory is 9600 baud.
Yes, the system supports two hot-swappable 3.5" IDE hard disks.
The EDR1640 supports NTSC and PAL video formats.
