This document describes the features and characteristics of the semiconductor product BAT 17, including its applications, maximum ratings, and electrical characteristics.

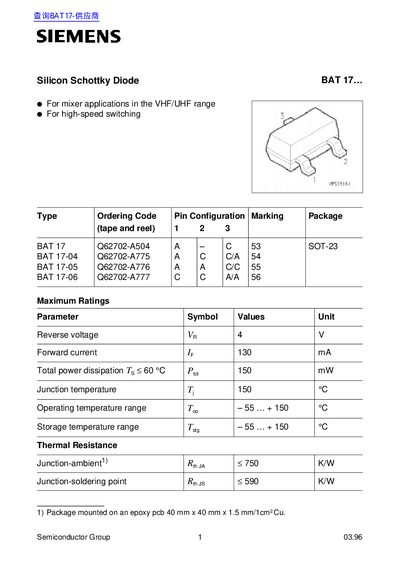

This document is a datasheet for the Siemens BAT 17 series of Silicon Schottky Diodes. The device is specifically designed for mixer applications in the VHF/UHF range and for high-speed switching operations. The datasheet provides ordering codes, pin configurations, and marking details for various models within the BAT 17 series.
| Application | For mixer applications in the VHF/UHF range; For high-speed switching |
|---|---|
| Reverse voltage | 4 V |
| Forward current | 130 mA |
| Total power dissipation | 150 mW |
| Junction temperature | 150 ?C |
| Operating temperature range | -55 ...+ 150 ?C |
| Thermal Resistance Junction-ambient | <750 K/W |
| Package | SOT-23 |
The diode is intended for mixer applications in the VHF/UHF range and for high-speed switching.
The maximum total power dissipation is 150 mW when the temperature is less than 60 C.
