This file introduces the DLR 5735/5736 series and DLG 5735/5736 series light emitting diode (LED) alphanumeric displays. The displays are 5x7 dot matrix, compatible with ASCII and EBCDIC formats, and well suited for use in keyboard verifiers, computer peripheral equipment, and other applications requiring an alphanumeric display. They are stackable both horizontally and vertically to generate large alphanumeric or even graphic displays.

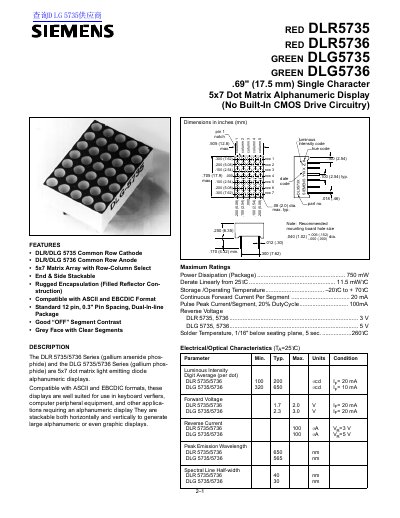

This document provides technical specifications for the Siemens reD DLR/DLG 5735/5736 series of single character, 5x7 dot matrix alphanumeric displays. The DLR models utilize gallium arsenide phosphide with a red face, while the DLG models use gallium phosphide with a green face.
| Display Type | .69" (17.5 mm) Single Character 5x7 Dot Matrix Alphanumeric Display |
|---|---|
| Package Type | Standard 12 pin, 0.3" Pin Spacing, Dual-In-line Package |
| Luminous Intensity (Red DLR) | 100 cd (Min) / 200 cd (Typ) |
| Luminous Intensity (Green DLG) | 320 cd (Min) / 650 cd (Typ) |
| Forward Voltage (Red DLR) | 1.7 V (Min) / 2.0 V (Typ) |
| Forward Voltage (Green DLG) | 2.3 V (Min) / 3.0 V (Typ) |
| Peak Emission Wavelength (Red DLR) | 650 nm |
| Peak Emission Wavelength (Green DLG) | 565 nm |
The DLR series uses gallium arsenide phosphide with a red face, while the DLG series uses gallium phosphide with a green face.
Yes, they are compatible with both ASCII and EBCDIC formats.
Yes, they are stackable both horizontally and vertically to generate large alphanumeric or graphic displays.
