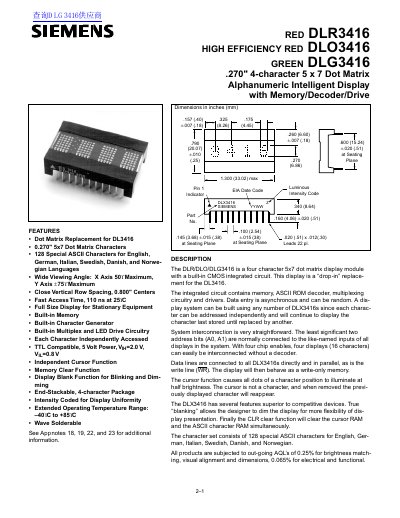

The DLR/DLO/DLG3416 is a four character 5x7 dot matrix display module with a built-in CMOS integrated circuit. This display is a “drop-in” replacement for the DL3416. The integrated circuit contains memory, ASCII ROM decoder, multiplexing circuitry and drivers. Data entry is asynchronous and can be random. A dis- play system can be built using any number of DLX3416s since each charac- ter can be addressed independently and will continue to display the character last stored until replaced by another. System interconnection is very straightforward. The least significant two address bits (A0 and A1) connect to the parallel data interface. A0 connects to the data interface’s D0 pin, and A1 connects to D1 pin.
This document describes the DLR, DLO, and DLG3416 series of four-character 5x7 dot matrix alphanumeric intelligent displays. These modules feature a built-in CMOS integrated circuit containing memory, an ASCII ROM decoder, multiplexing circuitry, and drivers. They are designed as a drop-in replacement for the DL3416.
| Operating Temperature | -40°C to +85°C |
|---|---|
| Storage Temperature | -40°C to +100°C |
| Character Height | 0.270" (6.86 mm) |
| Access Time (Typical at 25°C) | 110 ns |
| Supply Voltage | 4.5 V to 5.5 V |
The display supports English, German, Italian, Swedish, Danish, and Norwegian.
Yes, it is designed as a drop-in replacement for the DL3416.
