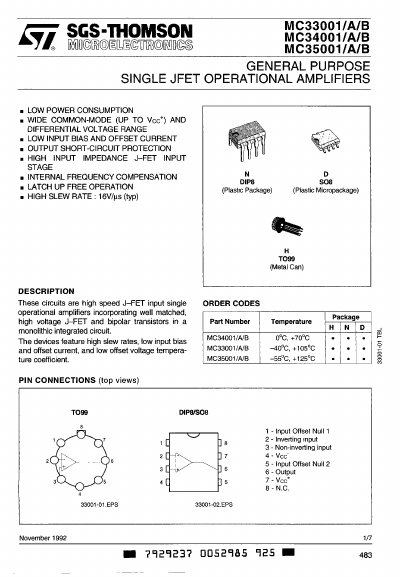

The document describes high-speed J-FET input single operational amplifiers that incorporate wall-matched, high-voltage J-FET and bipolar transistors in a monolithic integrated circuit. Key features include low power consumption, a wide common-mode and differential voltage range (up to Vcc), low input bias and offset current, output short-circuit protection, and internal frequency compensation.
| Slew Rate (typ) | 16 V/us |
|---|---|
| Supply Voltage Range | -218 to +218 V |
| Input Offset Voltage Drift | 10 uV/C |
The operating free air temperature range for the MC33001 is -40 to +105 C.
The absolute maximum rating for the supply voltage (Vcc) is +/- 218 V.
