BC327-25 and BC327-40 are small signal PNP transistors suitable for TV and home appliance equipment. They have high gain and low saturation voltage.

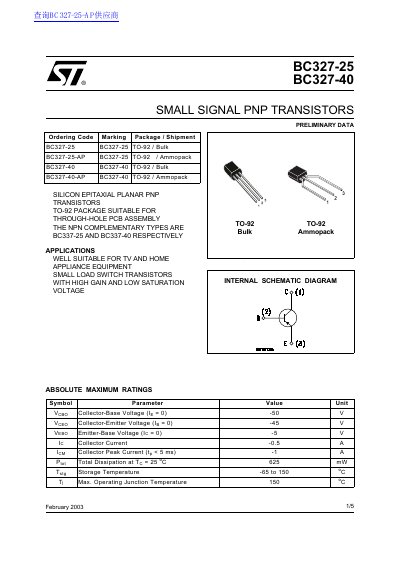

This document provides preliminary technical information for the BC327-25 and BC327-40 series of small signal PNP transistors. These devices are silicon epitaxial planar types housed in a TO-92 package, suitable for through-hole PCB assembly.
| Collector-Base Voltage (Vcbo) | -50 V |
|---|---|
| Collector-Emitter Voltage (Vceo) | -45 V |
| Emitter-Base Voltage (Vebo) | -5 V |
| Collector Current (Ic) | -0.5 A |
| Total Dissipation at Tc = 25 °C | 625 mW |
| Storage Temperature (Tstg) | -65 to 150 °C |
| DC Current Gain (hFE) for BC327-25 | Min. 160, Typ. 400 |
| DC Current Gain (hFE) for BC327-40 | Min. 250, Typ. 600 |
| Transition Frequency (fT) | 80 MHz |
The complementary NPN types are BC337-25 and BC337-40 respectively.
They are well suited for TV and home appliance equipment as small load switch transistors.
The maximum operating junction temperature (Tj) is 150 °C.
