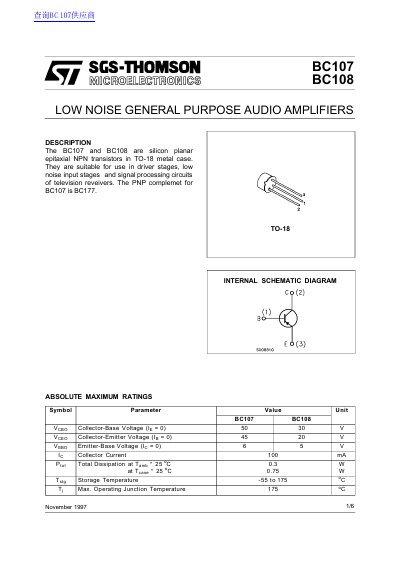

The BC107 and BC108 are silicon planar epitaxial NPN transistors in TO-18 metal case. They are suitable for use in driver stages, low noise input stages, and signal processing circuits of television receivers. The PNP complement for BC107 is BC177.
This document provides technical specifications for the BC107 and BC108, which are silicon planar epitaxial NPN transistors housed in a TO-18 metal case. These devices are designed for use in driver stages, low noise input stages, and signal processing circuits of television receivers. The PNP complement for the BC107 is identified as the BC177.
| Package Type | TO-18 metal case |
|---|---|
| Collector-Base Voltage (BC107) | 50 V |
| Collector-Emitter Voltage (BC107) | 45 V |
| Collector Current | 100 mA |
| Total Dissipation (Tamb < 25 °C) | 0.3 W |
| Storage Temperature | -55 to 175 °C |
The PNP complement for the BC107 is the BC177.
They are suitable for driver stages, low noise input stages, and signal processing circuits of television receivers.
