The Z01xxxN series of triacs uses a high performance TOP GLASS PNPN technology. These parts are intended for general purpose high volume applications using surface mount technology.

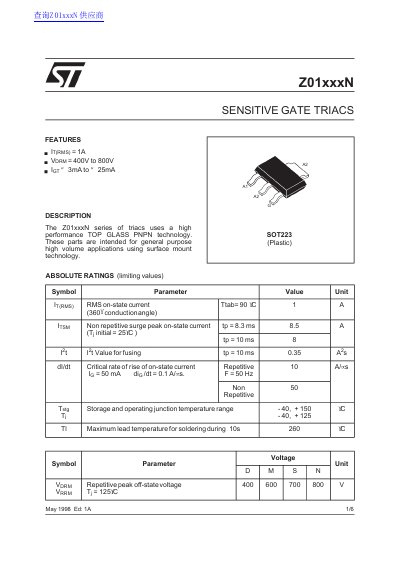

This document describes the Z01xxxN series of sensitive gate triacs manufactured by STMicroelectronics. These components utilize high-performance TOP GLASS PNPN technology and are designed for general-purpose, high-volume applications using surface mount technology (SOT223 package). The datasheet covers absolute ratings, electrical characteristics, thermal resistances, and ordering information.
| RMS on-state current (Ttab=90°C) | 1 A |
|---|---|
| Non repetitive surge peak on-state current (tp=8.3 ms) | 8.5 A |
| Value for fusing (tp=10ms) | 0.35 A's |
| Critical rate of rise of on-state current (di/dt) | Repetitive 10 Als |
| Storage and operating junction temperature range | -40, + 150 °C |
| Operating junction temperature range (Tj) | -40, +125 |
| Maximum lead temperature for soldering during 10s | 260 °C |
| Junction to ambient thermal resistance (Rth(j-a)) | 60 °C/W |
| Junction to leads thermal resistance for D.C (Rth(j-t)) | 30 °C/W |
| Junction to leads thermal resistance for A.C (F=50Hz) | 25 °C/W |
The Z01xxxN series uses a high performance TOP GLASS PNPN technology.
These parts are intended for surface mount technology in an SOT223 package.
The maximum operating junction temperature range is -40 to +125 °C.
