This document is the datasheet of STMicroelectronics' Z01 series 1A thyristors. It introduces the characteristics and features of the series products, including rated current, rated voltage, gate current, absolute maximum ratings, static characteristics, temperature characteristics, etc.

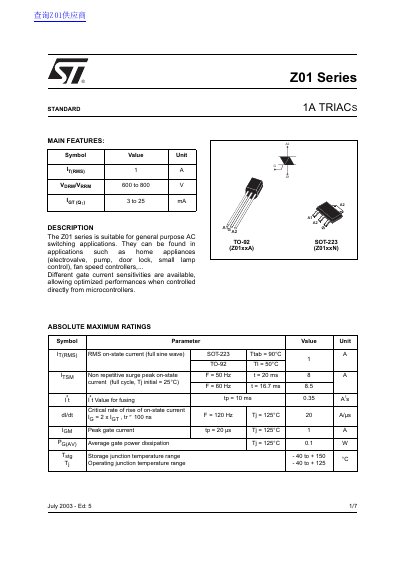

This document provides technical specifications for the STMicroelectronics Z01 Series Standard 1A TRIACs. These devices are designed for general-purpose AC switching applications, such as controlling home appliances like electrovalves, pumps, door locks, small lamps, and fan speed controllers. The series offers different gate current sensitivities to allow optimized performance when controlled directly from microcontrollers.
| Value for fusing ip=10ms | 0.35 A²s |
|---|---|
| Storage junction temperature range | -40 to +150 °C |
The series offers sensitivities of 3mA, 5mA, 10mA, and 25mA.
The storage junction temperature range is from -40 to +150 °C.
