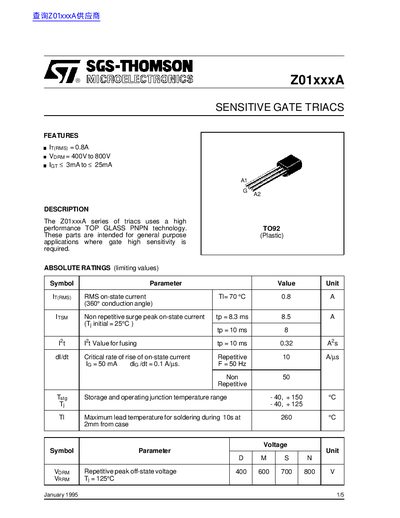

The Z01xxxA series of triacs uses a high performance TOP GLASS PNPN technology. These parts are intended for general purpose applications where gate high sensitivity is required.
The document describes the Z01xxxA series of triacs, which utilize high-performance TOP GLASS PNPN technology. These components are designed for general-purpose applications requiring high gate sensitivity and are available in a TO92 plastic package with voltage ratings ranging from 400V to 800V.
| Non repetitive surge peak on-state current (tp=8.3 ms) | 8.5 A |
|---|---|
| Repetitive peak off-state voltage options | 400 V to 800 V |
| Storage and operating junction temperature range | -40, +150 °C |
| Junction to ambient thermal resistance (Rth(j-a)) | 150 °C/W |
The parts are intended for general purpose applications in a TO92 plastic package.
The maximum lead temperature is 260 °C for a duration of 10 seconds.
