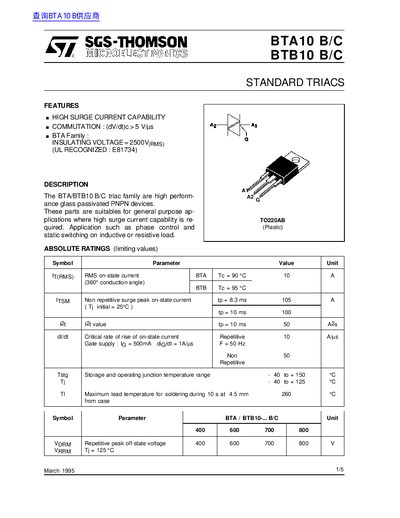

BTA10 B/C BTB10 B/C are high performance glass passivated PNPN devices produced by STMicroelectronics, suitable for general purpose applications where high surge current capability is required, such as phase control and static switching on inductive or resistive load.
This document describes the BTA/BTB10 B/C triac family, which are high-performance glass passivated PNPN devices suitable for general-purpose applications requiring high surge current capability. These parts are designed for phase control and static switching on inductive or resistive loads.
| Insulating voltage | 2500V |
|---|---|
| Storage and operating junction temperature range | - 40 to+ 150 °c |
| Maximum lead temperature for soldering | 260 °c |
| Package type | TO220AB |
| Weight | 2.3 g |
The critical rate of rise of on-state current is 10 A/us.
The maximum gate trigger current is 50 mA.
The recommended torque value is 0.8 m.N.
