This document describes the features and characteristics of BTA10 and BTB10 series SNUBBERLESS TRIACS, including maximum repetitive and non-repetitive current, critical rate of rise of on-state current, temperature range, etc.

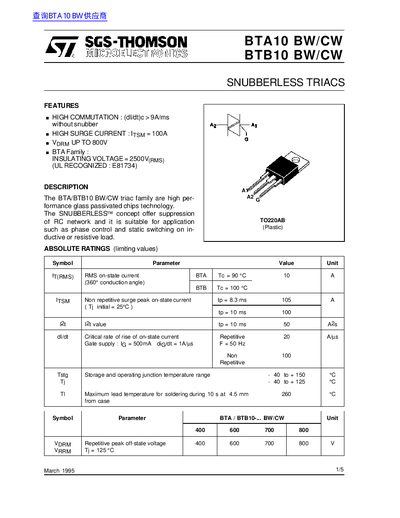

This document is a technical datasheet for the BTA/BTB10 BW/CW family of snubberless triacs manufactured by SGS-THOMSON Microelectronics. These devices utilize glass passivated chip technology and are designed for phase control and static switching applications on inductive or resistive loads without requiring an external RC snubber network.
| RMS on-state current (BTA) | 10 A |
|---|---|
| Non repetitive surge peak on-state current | 105 A (tp=8.3 ms) |
| Repetitive peak off-state voltage | 400V to 800V |
| Critical rate of rise of on-state current (di/dt)c | > 9A/ms |
| High surge current capability | 100A |
| Maximum lead temperature for soldering | 260 °C |
They offer a snubberless concept that suppresses the need for an RC network.
The storage and operating junction temperature range is -40 to +150 °C.
