The BTA/BTB10 series is a reliable device suitable for general AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, or for phase control operation in light dimmers, motor speed controllers, etc. The snubberless version is specially recommended for use on inductive loads, thanks to their high commutation performances. The BTA series provides voltage insulated tab (rated at 2500 V RMS) complying with UL standards by using an internal ceramic pad.

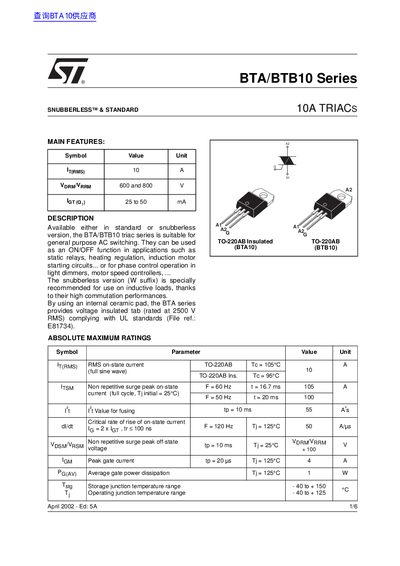

This document describes the BTA/BTB10 series of 10A Triacs, available in both standard and snubberless versions. These devices are designed for general-purpose AC switching applications, including static relays, heating regulation, induction motor starting circuits, and phase control operations in light dimmers and motor speed controllers. The snubberless version is specifically recommended for inductive loads due to its high commutation performance.
| Voltage rating | 600 and 800 V |
|---|---|
| Gate trigger current | 25 to 50 mA |
| Voltage insulated tab rating | 2500 V RMS |
| Package type | TO-220AB |
| Storage junction temperature range | - 40 to + 150 °C |
The snubberless version (W suffix) is recommended for use on inductive loads.
The maximum operating junction temperature is +125°C.
