This document describes the features and characteristics of the BTA/ BTB06 series, which can be used for AC switching operations. It includes the ON/OFF function suitable for applications such as static relays, heating regulation, induction motor starting circuits, as well as the phase control feature in light dimmers, motor speed controllers.

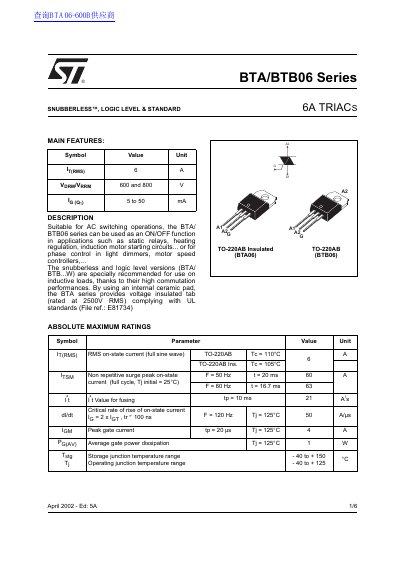

This document provides technical specifications for the BTA/BTB06 series of 6A Triacs. These devices are suitable for AC switching operations such as static relays, heating regulation, induction motor starting circuits, and phase control in light dimmers or motor speed controllers.
The datasheet details absolute maximum ratings, electrical characteristics for both snubberless/logic level (3 quadrants) and standard (4 quadrants) versions, thermal resistances, and mechanical package dimensions. It also includes a product selector guide covering 600V and 800V variants with different sensitivities.
| Voltage rating | 600 and 800 V |
|---|---|
| Gate trigger current (logic level) | 5 to 50 mA |
| Package type | TO-220AB Insulated / TO-220AB |
| Storage junction temperature range | - 40 to + 150 °C |
The snubberless and logic level versions (BTA/BTB...W) are specially recommended for use on inductive loads.
The internal ceramic pad provides a voltage insulated tab rated at 2500V RMS, complying with UL standards.
