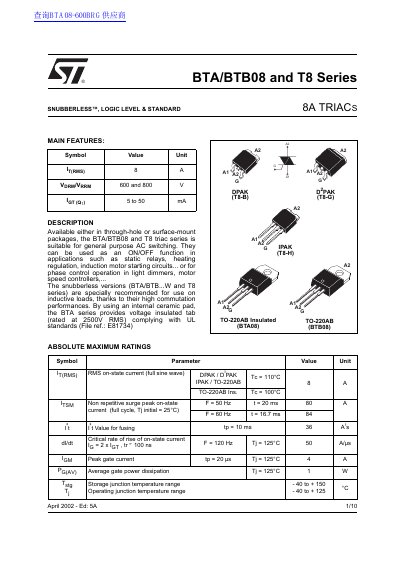

STMicroelectronics BTA/BTB08 and T8 Series Triac Datasheet

BTA/BTB08 and T8 Series SNUBBERLESS™, LOGIC LEVEL & STANDARD 8A TRIACS

Brand: STMicroelectronics
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 132 KB
Published: 09 July, 2012
Updated: 30 September, 2023
Model: BTB08
MD5 checksum: 1619F5E6E9FC6DCA820000C48BB714FD
PDF: STMicroelectronics BTA/BTB08 and T8 Series Triac Datasheet PDF

About this manual

This document provides technical specifications for the BTA/BTB08 and T8 series of triacs manufactured by STMicroelectronics. These devices are available in through-hole or surface-mount packages and are designed for general-purpose AC switching, including use as static relays, heating regulation, induction motor starting circuits, and phase control operations.

What's inside

Main Features
Absolute Maximum Ratings
Electrical Characteristics
Thermal Resistances
Ordering Information
Package Mechanical Data

Specifications

RMS on-state current (full sine wave)	8A
Non repetitive surge peak on-state current	80 A (50 Hz, 20 ms)

Frequently asked questions

What are the available package types?

The triac series is available either in through-hole or surface-mount packages.

Which versions are recommended for inductive loads?

Snubberless versions (BTA/BTB...W and T8 series) are specially recommended for use on inductive loads.

What is the voltage insulation rating?

The BTA series provides a voltage insulated tab rated at 2500V RMS.
