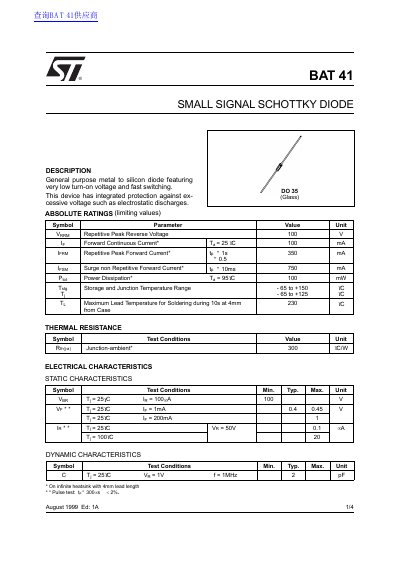

BAT 41 is a small signal Schottky diode in the BAT series. It features a very low turn-on voltage and fast switching. This device has integrated protection against excessive voltages such as electrostatic discharges.
This document describes the BAT41, a general purpose metal to silicon Schottky diode designed with very low turn-on voltage and fast switching capabilities. The device includes integrated protection against excessive voltage such as electrostatic discharges.
The datasheet provides absolute ratings including a repetitive peak reverse voltage of 100 V and forward continuous current up to 100 mA at 25°C. It also details electrical characteristics for static and dynamic parameters, along with mechanical dimensions for the DO-35 Glass package.
| Repetitive Peak Reverse Voltage | 100 V |
|---|---|
| Forward Continuous Current | 100 mA |
| Repetitive Peak Forward Current | 350 mA |
| Surge non Repetitive Forward Current | 750 mA |
| Power Dissipation | 100 mW |
| Storage and Junction Temperature Range | -65 to +150 °C |
| Junction-ambient Thermal Resistance | 300 °CW |
The typical forward voltage is 0.45 V when the junction temperature is 25°C and the current is 1mA.
The maximum lead temperature for soldering during 10 seconds at 4mm from case is 230°C.
The BAT41 is available in a DO-35 Glass package.
