BTA08B/C and BTB08B/C triacs are glass passivated PNPN devices with high performance and high surge current capability. This series of products is suitable for general purpose applications where high surge current capability is required, such as phase control and static switching on inductive or resistive load.

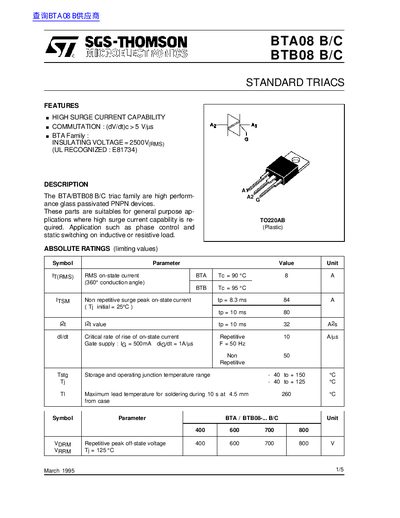

This document provides technical specifications for the BTA08 B/C and BTBO8 B/C standard triac family. These glass passivated PNPN devices are designed for general-purpose applications requiring high surge current capability, such as phase control and static switching on inductive or resistive loads.
The datasheet details absolute ratings including RMS on-state currents up to 8A and non-repetitive surge peak currents up to 124 A. It also covers thermal characteristics, electrical parameters like gate trigger current (IGT) and holding current (IH), and ordering information for insulated (BTA) and uninsulated (BTB) variants in the TO220AB plastic package.
| Repetitive peak off-state voltage (VDRM/VRRM) | 400, 600, 700, 800 V |
|---|---|
| Storage and operating junction temperature range (Tstg) | - 40 to+ 150 °C |
| Maximum lead temperature for soldering (TI) | 260 °C |
The devices are available in a TO220AB plastic package.
The maximum RMS on-state current is 8 A when the junction temperature (Tj) is 90°C.
The recommended torque value is 0.8 m.N., and the maximum torque value is 1 m.N.
The weight of the TO220AB plastic package is 2.3 g.
