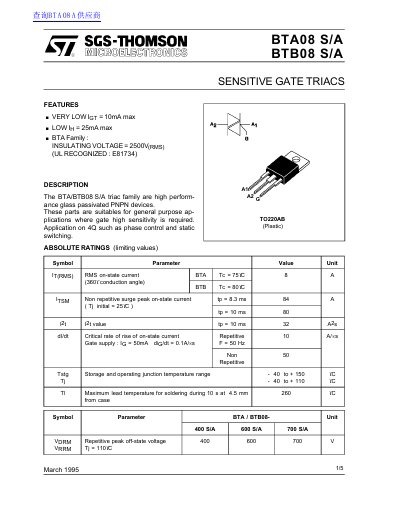

BTA08 S/A BTB08 S/A are sensitive gate triacs suitable for general purpose applications requiring high sensitivity. They have low IGT and low IH characteristics.
This document provides technical specifications for the BTA/BTB08 S/A triac family, which are high-performance glass passivated PNPN devices designed for general-purpose applications requiring high gate sensitivity. These components are suitable for phase control and static switching in 4Q configurations.
The datasheet includes absolute maximum ratings such as an RMS on-state current of 8A (BTA) or 10A (BTB), a non-repetitive surge peak current up to 84A, and operating junction temperatures from -40°C to +150°C. It also details thermal resistances, electrical characteristics like gate trigger current, and provides mechanical data for the TO220AB plastic package.
| RMS on-state current (BTA) | 8 A |
|---|---|
| RMS on-state current (BTB) | 10 A |
| Non repetitive surge peak on-state current | 84 A |
| Storage and operating junction temperature range | - 40 to+ 150 °C |
| Junction to ambient thermal resistance (DC) | 60 °CiW |
| Gate trigger current (IGT) max | 10 mA |
| Package type | TO220AB Plastic |
The maximum RMS on-state current for the BTA model at a junction temperature of 75°C is 8 A.
The device can operate within a junction temperature range of -40 to +110 °C.
The maximum non-repetitive surge peak on-state current (tp = 8.3 ms) is 84 A.
